NO TOOL is required during installation
V-groove technology means no epoxy is required
Transparent body allows immediate splicing result
Compatible with Flat and Drop Fiber Optic Cables
Fast Installation in Just 30 Seconds
Typical Insertion Loss: 0.1 dB
Reusable More Than 5 Times
Introduction:

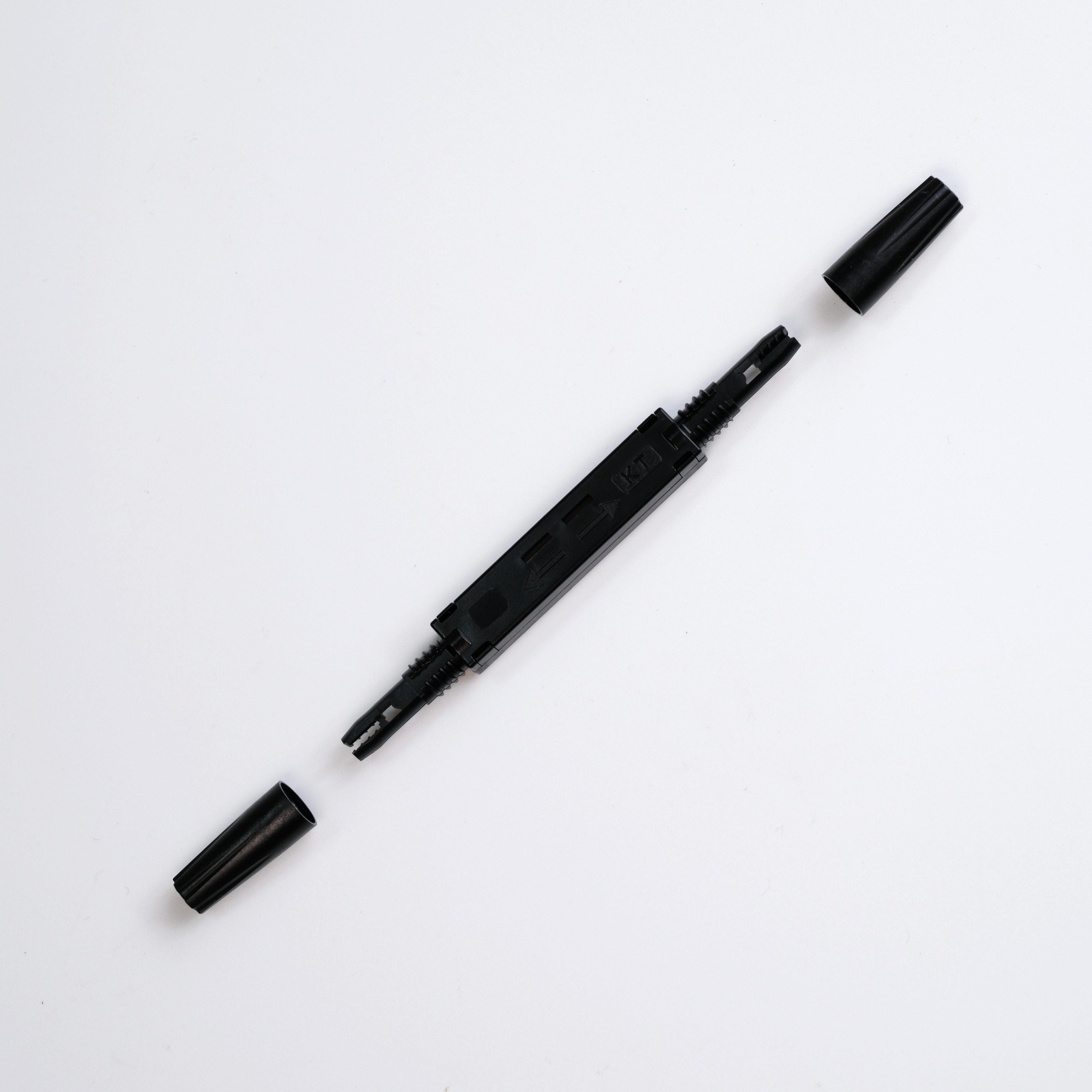

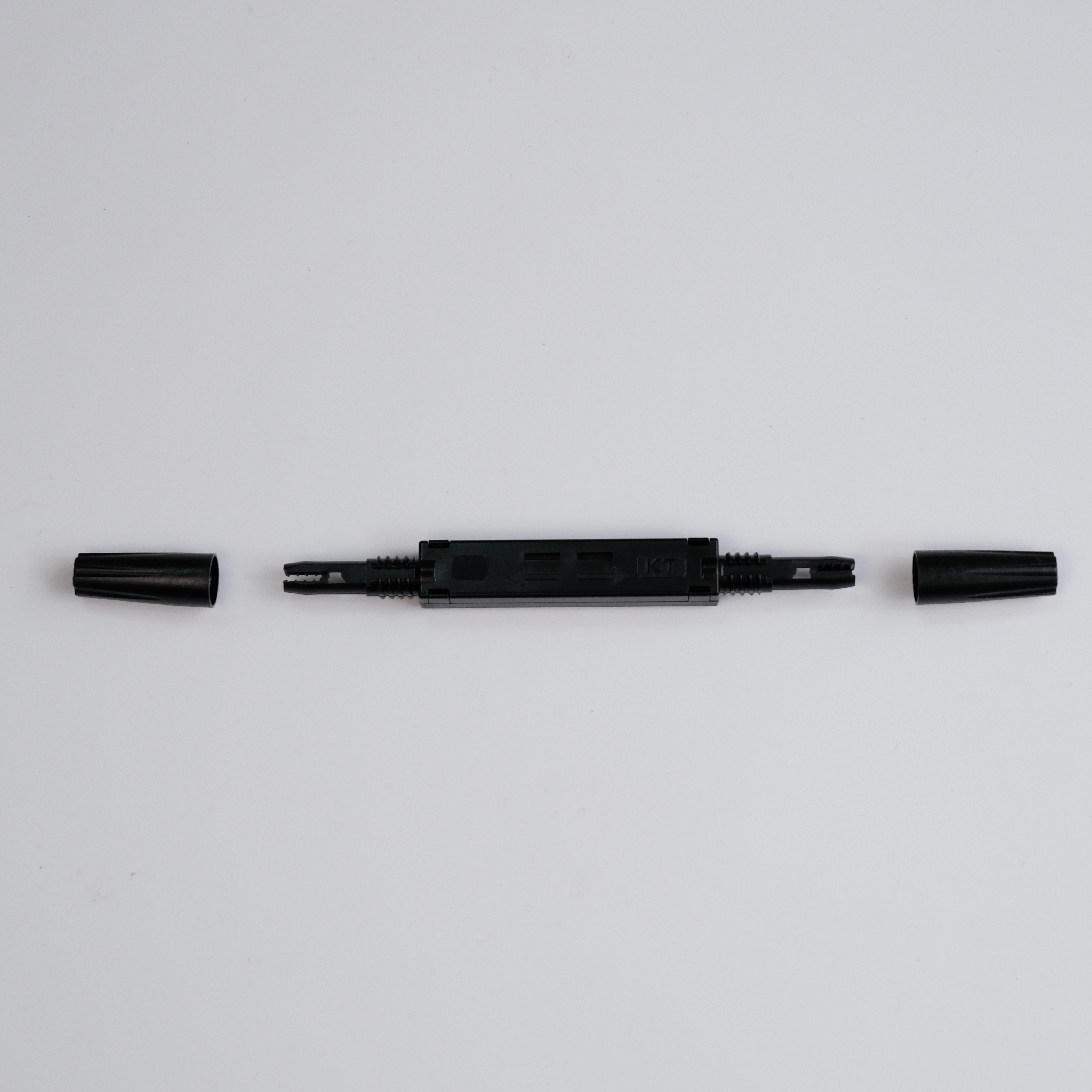

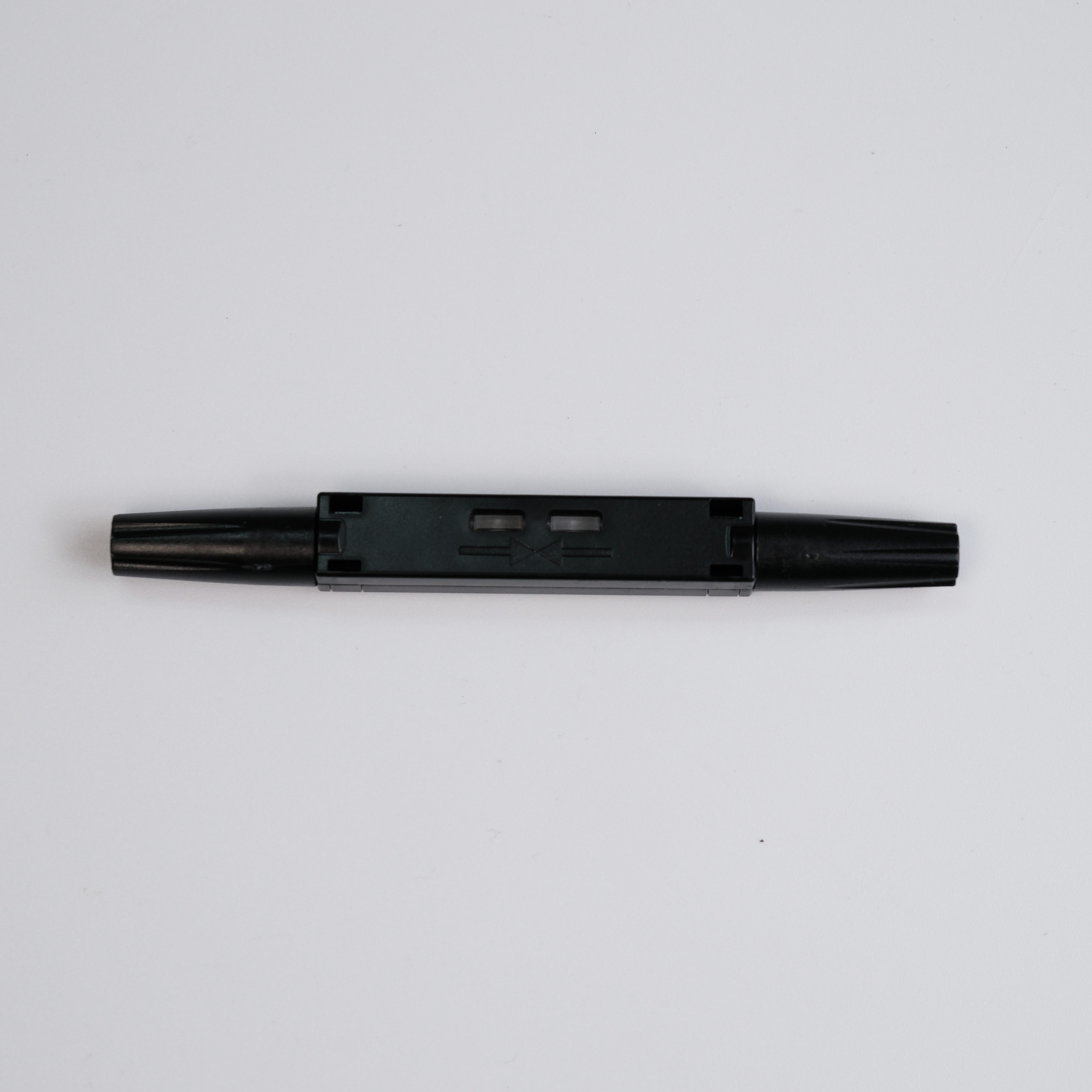

The KT JOINT 033 Fiber Mechanical Splice utilizes precision V-groove technology for fast and reliable optical fiber connections without epoxy. Its transparent body allows immediate visual inspection of the connection. With a typical insertion loss of 0.1 dB, installation can be completed in approximately 30 seconds. The built-in cable ruler ensures accurate fiber stripping and cleaving. Once installed, the splice provides excellent resistance to water and dust, making it a reliable solution for indoor and outdoor fiber optic applications.
NO TOOL is required during installation
V-groove technology means no epoxy is required
Transparent body allows immediate splicing result
Compatible with Flat and Drop Fiber Optic Cables
Fast Installation in Just 30 Seconds
Typical Insertion Loss: 0.1 dB
Reusable More Than 5 Times
Specifications
|
Model |
KT JOINT 033 |
|
Material |
PC Plastic |
|
Fiber Size |
Flat Cable / Drop Cable (about 2mm x 3mm) |
|
Assemble Time |
30s(after preparing fiber ends) |
|
Applicable Optical Cable |
0.25mm to 0.25mm |
|
Insertion Loss(AVG) |
≤0.1dB(1310/1550nm) |
|
Return Loss(AVG) |
≤-40dB |
|
Tensile Strength |
0.25mm Bare Fiber≥3N/30s |
|
Operating Temperature |
-40 - 85℃ |
|
Reusable Times |
≥10 times |
|
Dimensions |
94*10*9mm |
|
Weight (1pcs) |
9 g |
|
Package |
100 pcs/bag , 1000 pcs/carton (Every 100 pcs connectors with 2 fixed strip is included) |

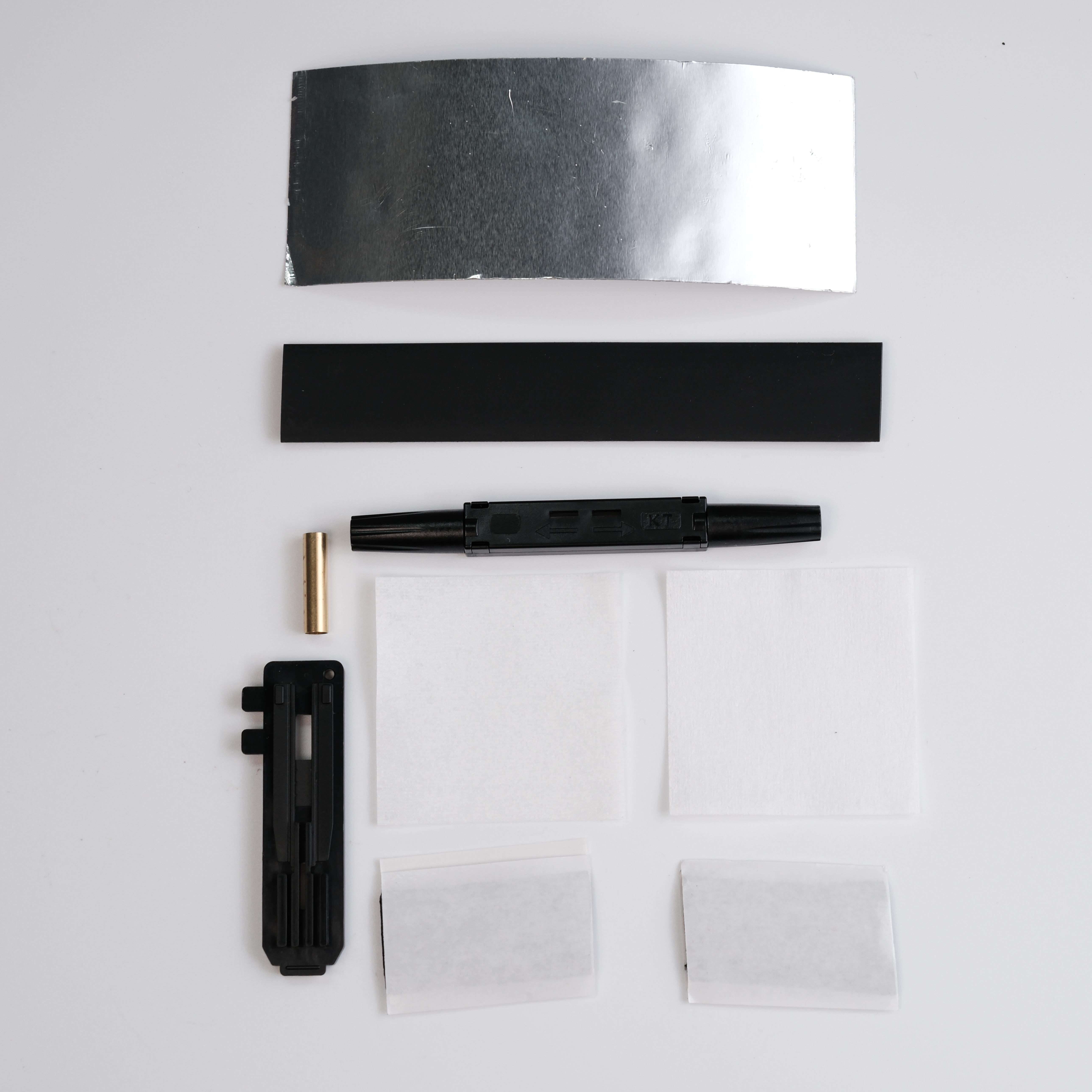

Standard Package
|
1 |
Foil stickers*1 |
|
2 |
PE heat shrink-tubing*1 |
|
3 |
KT JOINT 033 Fiber Mechanical Splice |
|
4 |
Copper pipe*1 |
|
5 |
Fiber optic wipes*2 |
|
6 |
Double-sided tape*2 |
|
7 |
Fixed strip*1(Every 100pcs connectors with 2 fixed strip is included) |
