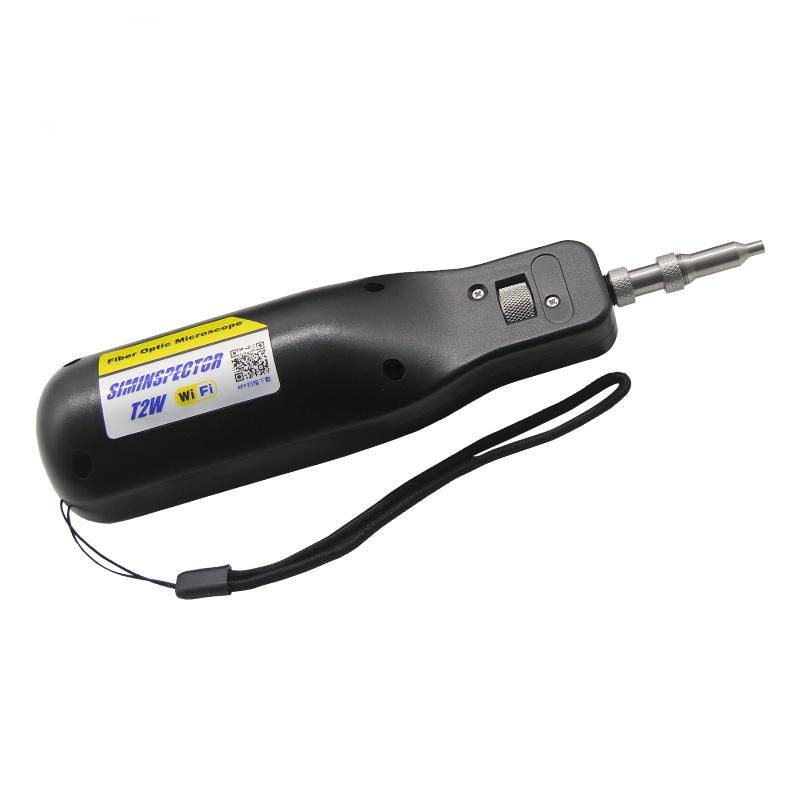

WIFI Version Optical Fiber Inspection Microscope 200x

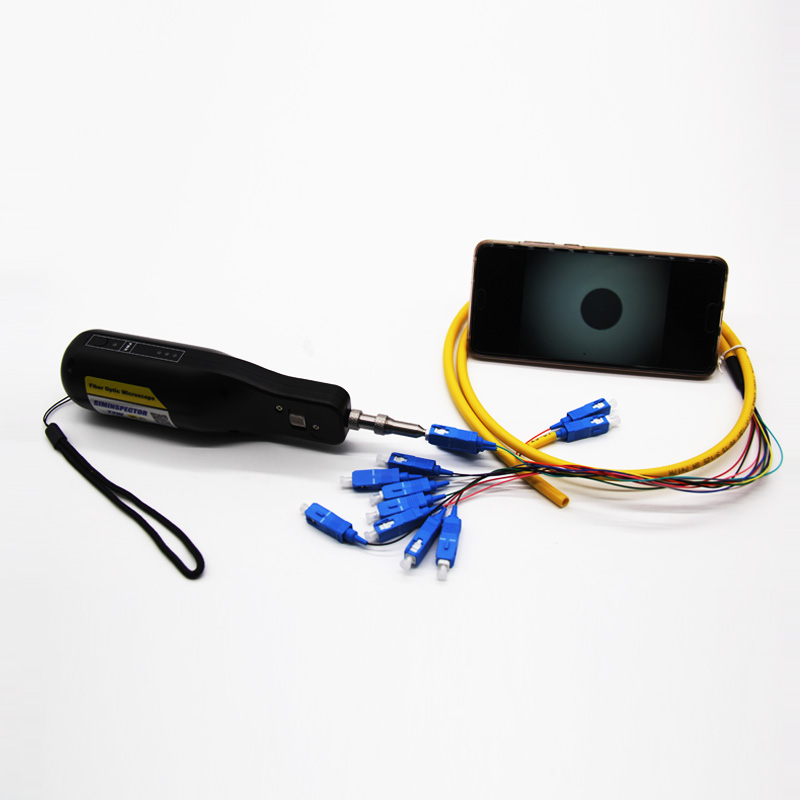

WI FI Fiber microscope is a portable fiber end face detector，Through the WI FI signal, the image is transmitted to the mobile phone for display, which is convenient to carry, and can clearly judge the condition of the fiber end face, such as scratches and dirt, and is a good choice for the fiber end face detection. The fiber end face detection system has built- in independent WI FI signal, and cooperates with high-definition CCD and lens to display images on the mobile phone. A full range of adapter interfaces are available to meet the needs of fiber end face inspection in all applications.
Features
• Longer life and good image quality
The fiber microscope's internal structure has been redesigned to provide a longer life. No matter how bad the environment is, the internal optics will not deteriorate, and the image quality will remain the same.
• Using the Wi-Fi signal , the connection is convenient and stable
According to the customer's feedback, the Wi-Fi signal is used to connect the mobile phone, which aligns with the intelligent working mode of modern society and ensures stable connectivity. Whether it's a factory environment or an engineering site, our detectors always display stable and clear images.
• Clear image acquisition software

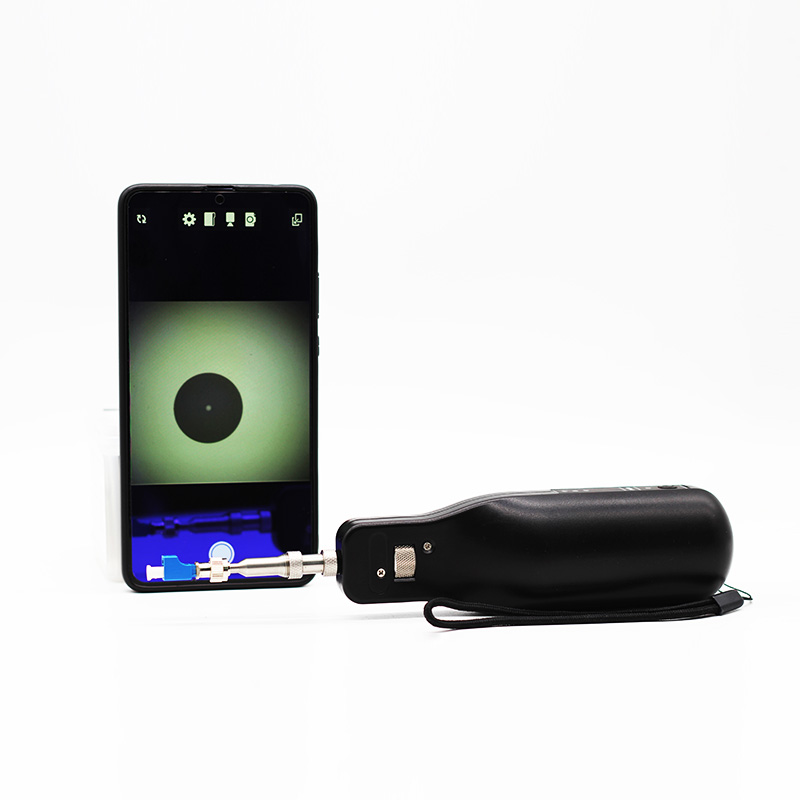

The image signal transmitted to the mobile phone , through the developed image display software , the image display is clear, which is more conducive to viewing different end faces and satisfying various test environments .
• Multiple product detection functions
Can be equipped with a variety of adapter interfaces to test the test of fiber optic connectors , optical transceiver modules , TOSA & ROSA components , etc . Claim. The newly added MT interface can detect MPO and MTP products, such as MPO and MTP adapters, 40G and 100 G optical modules, etc. It can meet the maintenance tasks of the next high-density data center.
Specification
|

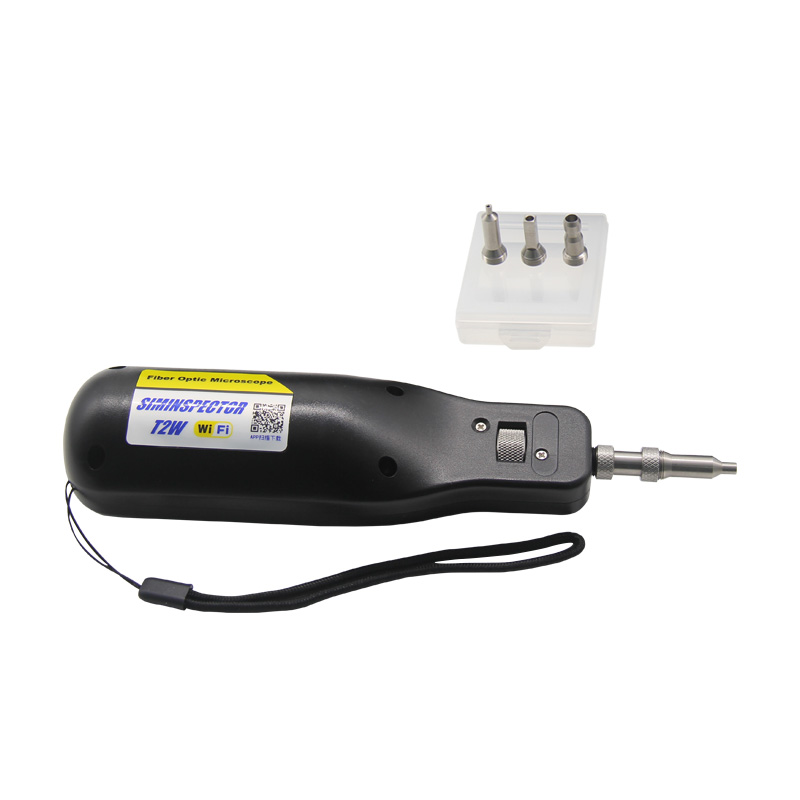

Adapter
|
2.5PC 2.5APC 1.25PC SFP Optical module SC2 .5Female PC/APC
|
|
Magnification
|
200X
|
Video signal
|
WIFI signal transmission
|
|
Power consumption
|
3W
|
Display
|
Phone screen display
|
|
Power supply
|
Built-in rechargeable
battery
|
Operating hours
|
≥5H
|
|
Operating temperature
|
- 10~50℃
|
Focus mode
|
Manual
|
|
Storage temperature
|
- 20~50℃
|
Volume
|
45mm * 50mm * 220m m
|
